Installing saddlebags, passenger
back-rest (sissy bar), or just about anything requiring the removal
of the rear fender of your V-Rod. This write-up is based on my
'07 VSRCAW
abut there should be no variations between the various models.
Tools Necessary

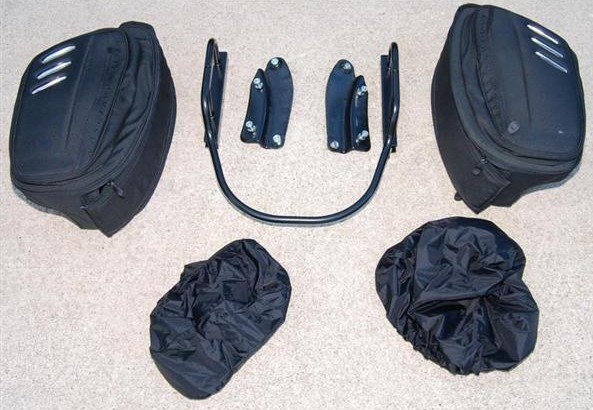

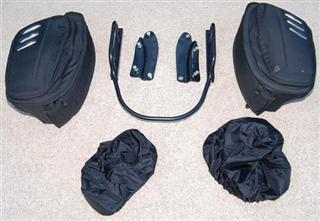

Verify that you have the proper mounting brackets
for the components that are planning to install. Most of the
parts sold by Harley Davidson need additional components for proper
installation.
Start by lifting the main seat
Slide the strap off of the passenger seat

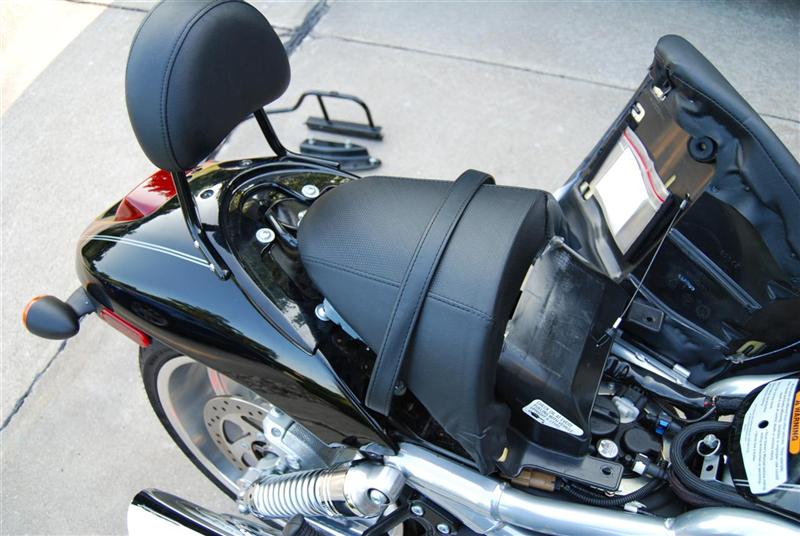

Lift the front of the passenger seat and then slide

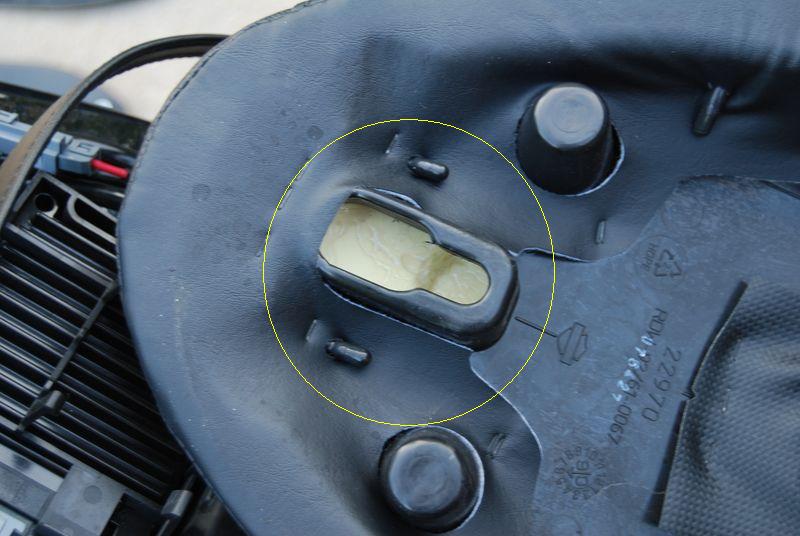

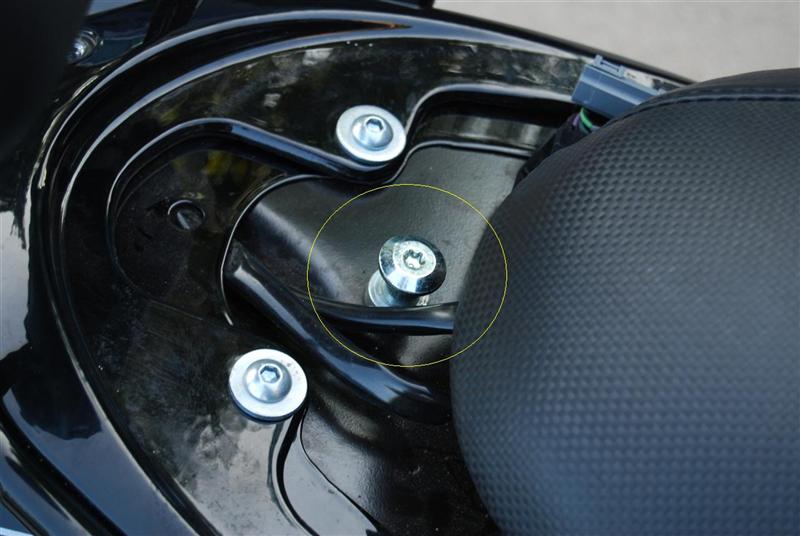

the seat forward to release it. The rear seat catches on a
post. See the pictures for the post and groove in the seat.
Also, the cable that stops the front seat will still be attached.
Drape the rear seat over the side and out of the way.

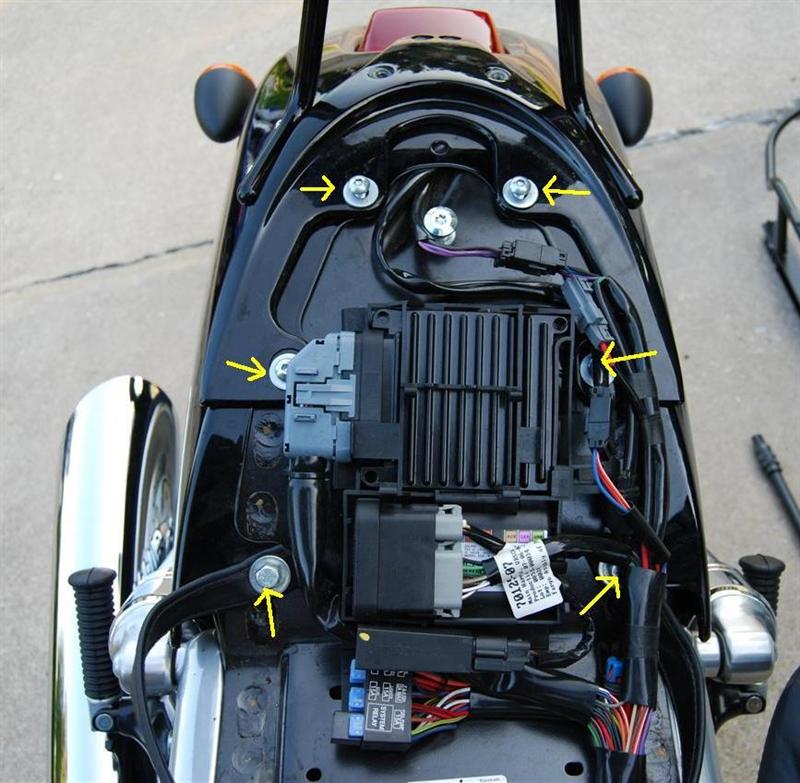

With the rear seat out of the way, you will be able

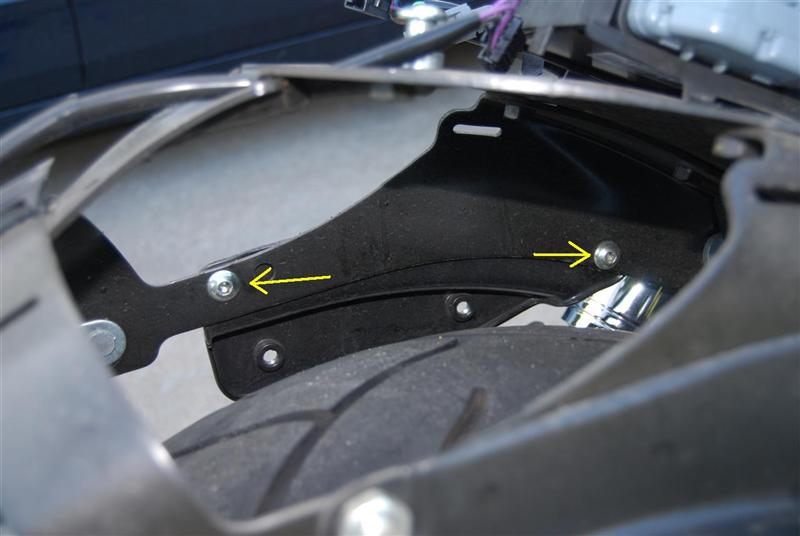

to see fuses and a computer. Remove the 6 indicated bolts to
remove the rear fender. Move the wires and computer aside to
access the bolts. (if you are not installing saddlebags, skip
to the backrest, luggage rack, or seat section).

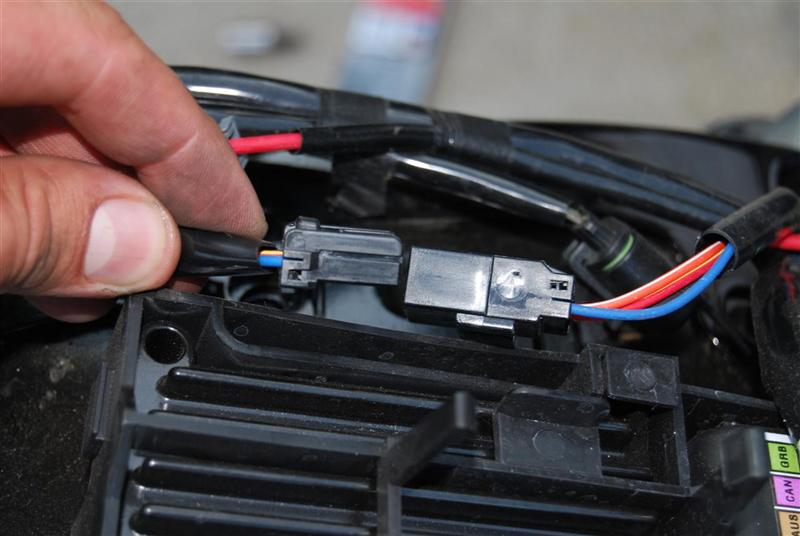

Disconnect the harness plug for the tail light.
To remove the rear fender, slide the fender back and
the lift up to remove. You may need to maneuver it slightly to
free it from the bike.

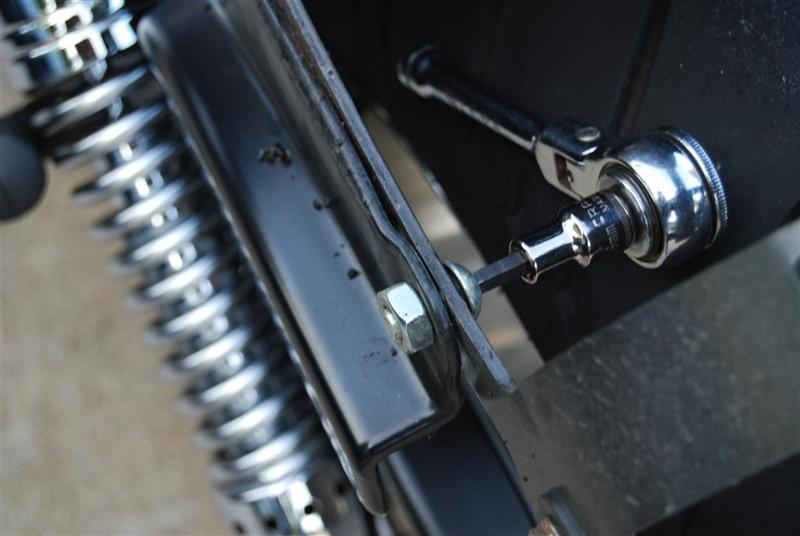

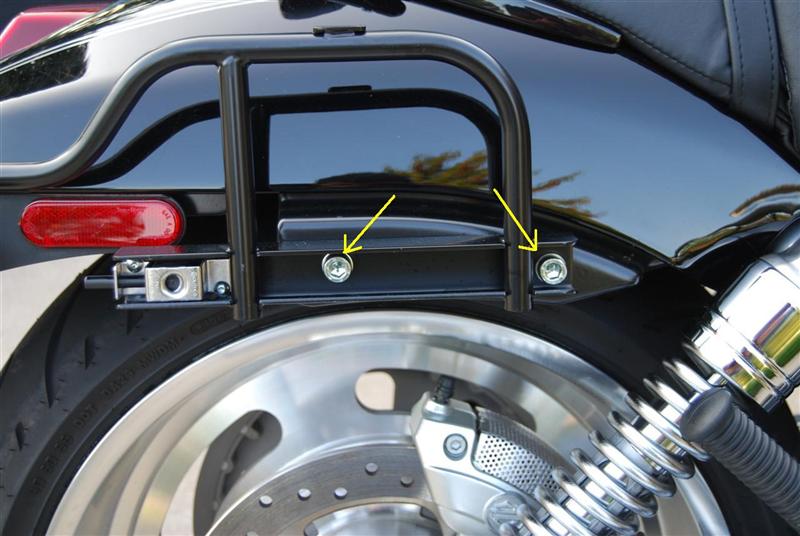

Attach the saddlebag brackets to the frame using the
correct hardware.
After installing the brackets, reinstall the fender.
Pay attention to the wiring under the fender. There is a
groove for the wiring. Remember to catch the lip on the back
of the bike with the fender then slide it forward to line up the
bolt holes. Attach the brake light wiring as well.
Back Rest, Luggage Rack, Optional Seats
If you are installing a back rest, luggage rack or
any other optional parts, this is the time to do it. Again, if
you are not installing saddlebags, you can skip the removal of the
fender. You will still be required to remove the bolts that
secure the fender to the bike.
Set the bracket for the additional hardware over the
bolt holes for the rear fender.
Final Assembly
With the fender (and backrest
bracket) in place, secure with 6 bolts from the bike or those
included with the various kits. Do not forget to include the
strap on the front two bolts.

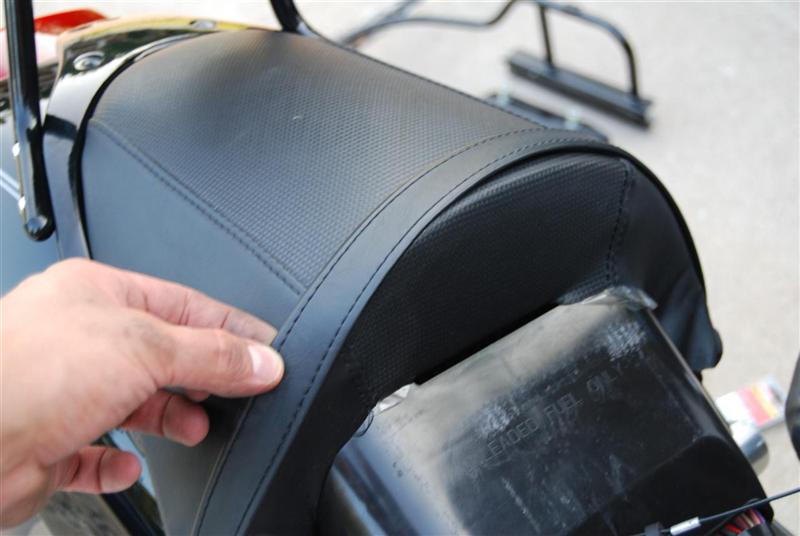

Slide the seat through the hoop.
Latch the seat onto the post and secure it with the nut and stud.
With the seat bolted in place,
you can continue with the saddlebag mounting bracket. Hold the
bracket in place and attach it to the plates you installed earlier.

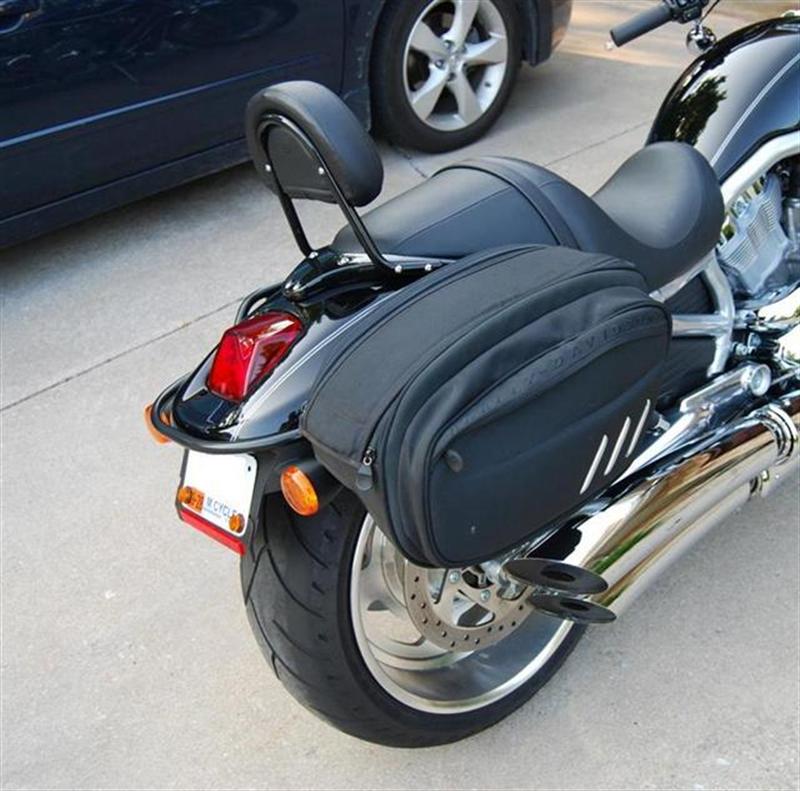

Finally, hang the bags on the
mounting bracket and verify that they have clipped into place.
Regardless of the hardware being
installed, the installation will be similar. If you are replacing
the seat, or simply installing the back rest, follow the steps that
outline those areas. With a set of simple hand tools, you can
save yourself hundreds of dollars by avoiding the dealership.
Enjoy!
|
